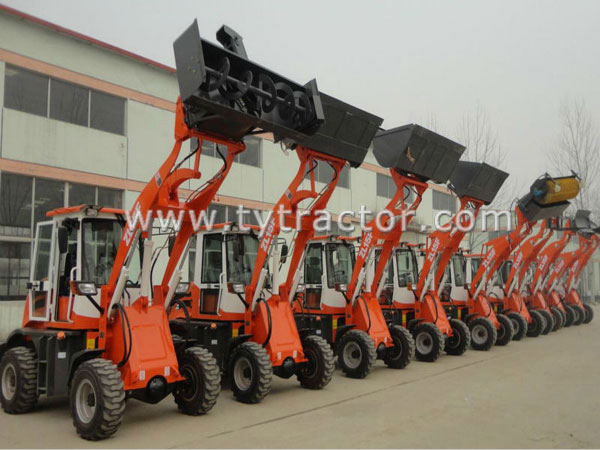

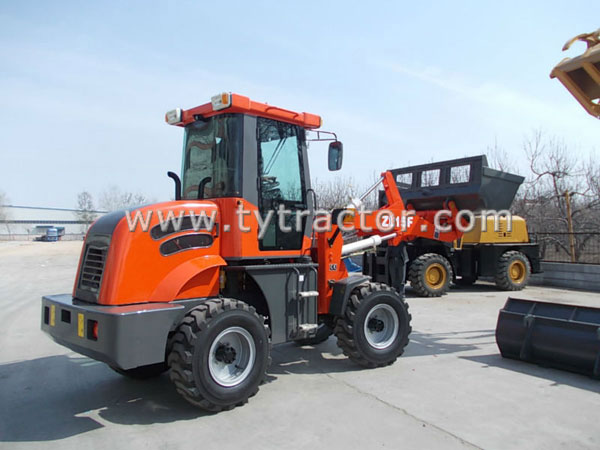

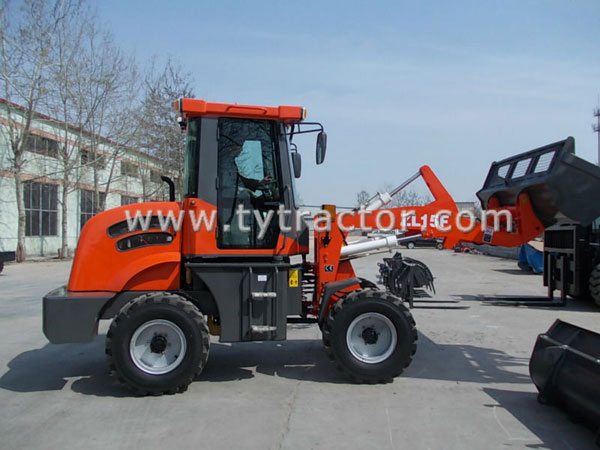

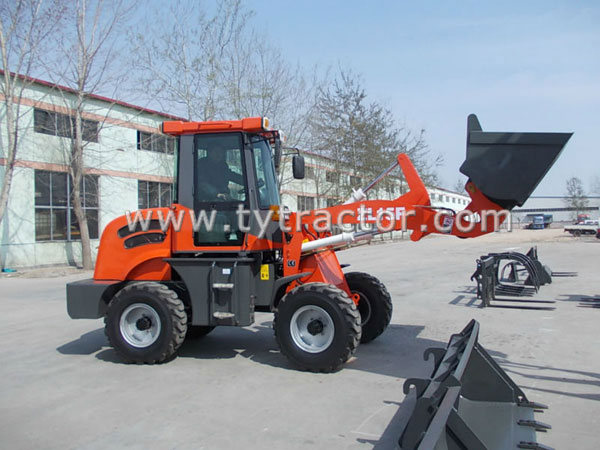

ZL15 Wheel Loader, 1500KG Wheel Loader
Go back to Catalog: Wheel Loader
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
ZL15 Wheel Loader Series
Mini loader with CE certificate
Euro 3 standard engine
Larger space's cab
Powerful driving foce
Mini loader with CE certificate
Euro 3 standard engine
Larger space's cab
Powerful driving foce
| Main Specification for ZL-15 | |
| Model | ZL15 |
| Rated load(kg) | 1500 |
| Bucket capacity(m3) | 0.7 |
| Wheel distance(mm) | 1330 |
| Axle-base(mm) | 2200 |
| Loader clearance radius(mm) | 4600 |
| Mini base to the ground(mm) | 310 |
| Dump clearance(mm) | 2700 |
| Distance acc. to the height(mm) | 900 |
| Time of raise(s) | 4 |
| Hydraulic cycle time(s) | 8.5 |
| Turns to pick the strength mose greatly(kn) | 45 |
| Drive ways | four are drive |
| Torque Converter Model | YJ240 |
| Gear Shift | 2 forward & 2 reverse shift |
| Tyresize | 14-17.5 |
| Operating weight(kg) | 3500 |
| Overall dimensions(mm) | 5000*1700*2700 |
| Engine model | Xinchai 498 |
| Engine Type | Four strokes, Water cooling, Inline, injecting combustion chamber |
| Cylinder No. -Bore*Stroke(mm) | 4-102*115 |
| Engine rated power(kw) | 36.8 |
| Engine rated output(rpm) | 2400 |
