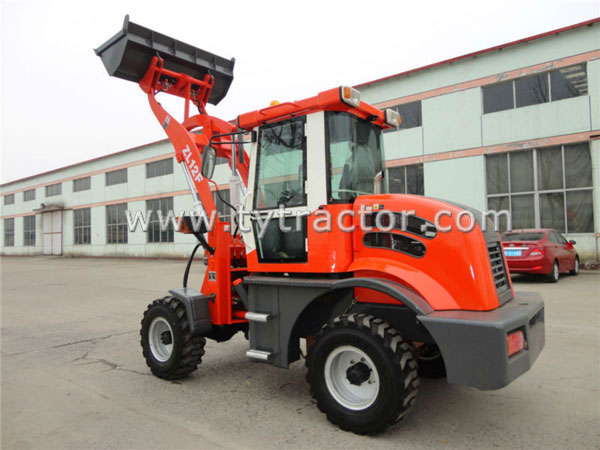

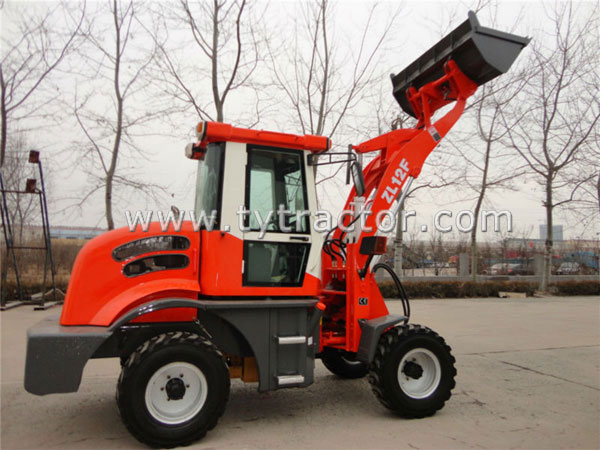

ZL12 Wheel Loader, 1200KG Wheel Loader Manufacturer

Package: Pallet Packing or as customer requier

Minimum Order: 1 SET

Delivery Time: 15 Days - 30Days

Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

By wheel: 2WD/4WD

Color : Green, Red, Blue, on request

Payment Terms: T/T, L/C At Sight

ZL12 Wheel Loader Series
SPECIFICATIONS:

1.0 Engine Details

Model: Xinchai 490 Engine(Euroiii and EPA Certificate)

(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power: 37KW

(4) Rated Speed: 2200 r/min (rpm)

(5) Fuel Consumption ratio in standard working condition: 230g /kw. H

2.0 Transmission System

(1) Type: Fixed-spindle Power shift

(2) Shift gear control oil pressure: 1.2~1.5MPa

(3) Rated input speed: 2500 (rpm)

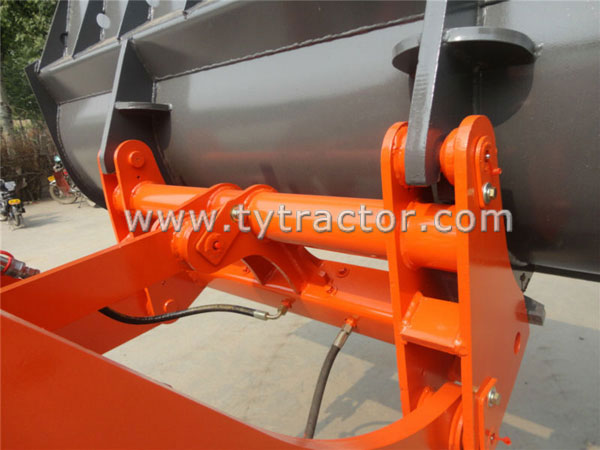

3.0 Bucket

(1) Bucket Capacity: 0.6 m3 (2) Bucket width: 1800mm

(3) Bucket type: Heavy-duty bolt on teeth

(4) Rated Load: 1200kg

(5) Operating Weight: 3300kg

4.0 Overall Dimensions

(1) Overall Length (Bucket on ground position): 4750mm

(2) Overall Height:2700mm

(a) Ground to Cab Top: 2500mm

(b) Dumping Height: 2600mm

(3) Overall Width: 1730mm

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Min Turning Radius: 3900mm

(3) Driving System: Hydraulic converter

6.0 Brake System

(1) Service Brake: Four Wheel Hydraulic spread-shoed brake

(2) Parking Brake: Hand operated

7.0 Tyre: 12.00-16

OPTIONS:
